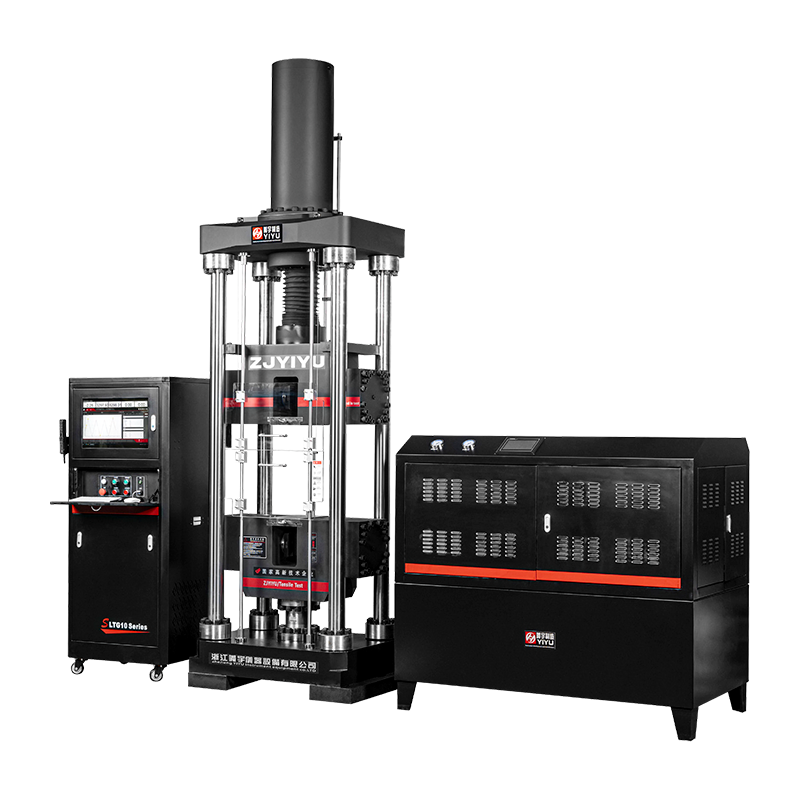

WPW-SS Series Horizontal Push Single Space Microcomputer Controlled Electro-Hydraulic Servo Universal Testing Machine

PREV: WYW-SS Series Vibration-Free Microcomputer Controlled Electro-Hydraulic Servo Universal Testing Machine
NEXT: GWA-ES Series Microcomputer Controlled Electro-Hydraulic Servo Universal Material Testing Machine for Steel Bars and Strands Dual-Purpose Machine

DESCRIPTION

TECHNICAL PARAMETERS

DESCRIPTION

Adopting a gapless rigid structure, the test space is adjusted directly by the lifting and lowering of the piston, which is convenient and efficient to operate. The test parameters include controller, hydraulic system, measurement of test force, displacement, deformation, etc.
A high rigidity single space electro-hydraulic servo universal testing machine with a load range of 300KN-2000KN, suitable for industries such as steel construction and civil engineering. High load mechanical performance test. Suitable for tensile testing of metal bars and plates, threaded steel tensile testing, steel strand tensile testing, tensile testing of high-strength bolts and high hardness metal materials, as well as compression testing of concrete.
The accompanying SmartTest V10.0 software is simple, fast, and convenient, making the user testing process easier. Applied in aerospace, automotive, higher education institutions, new materials, research institutes, building materials, quality inspection, and other fields.

Low pressure bidirectional oil cylinder ensures durability and stability under various working conditions, achieving a space
Guiding columns increase the lateral rigidity of equipment and the stability of moving jaws
Semi closed structure, super rigidity, good stability. Adjustable jaw opening for robotic automation equipment
Hydraulic clamping system, super strong clamping force, ensuring the clamping stability of the style
The hydraulic system is equipped with servo motors and radial piston pumps, with ultra-low decibels, low oil temperature, high efficiency and stability, and a quiet testing process, providing a quiet space for the laboratory
Equipped with a dedicated oil cooler system to ensure long-term uninterrupted stability during use
A bidirectional 0.5 level load sensor with high accuracy, good repeatability, and long-term stability. Meet the requirements of bi-directional tensile and compressive testing

TECHNICAL PARAMETERS

Project/Indicator/Model	WPW-300SS	WPW-600SS	WPW-1000SS	WPW-2000SS	WPW-2000SS(Upgraded version)
Maximum load	300kN	600kN	1000kN	2000kN	2000kN
Effective range	1%-100%FS
Testing machine accuracy	Level 0.5
Force resolution	1/± 500000 FS of maximum deformation
Error of test force indication	± Within 0.5%
Drive mode	Hydraulic + servo valve
Upper and lower platen size	22029050	22029050	22029050	27029060	27029060
Total power	7KW	7KW	9KW	15KW	15KW
power supply	AC 380V ± 10%, 50Hz
Resolution of displacement measurement	0.009mm
The main cylinder rises at speed	400 mm/min	400 mm/min	400 mm/min	260 mm/min	260 mm/min
Main cylinder descent speed	300 mm/min	300 mm/min	300 mm/min	260 mm/min	260 mm/min
Stretch the jaws at a maximum distance	560mm	600mm	680mm	800mm	1250mm
Maximum compressed space	560mm	600mm	680mm	800mm	1250mm
Round specimen clamping range	φ10-φ40mm	φ10-φ40mm	φ10-φ60mm	φ10-φ80mm	φ10-φ80mm
Plate specimen clamping range	0-40mm	0-40mm	0-50mm	0-70mm	0-70mm
Maximum width of the plate specimen	100	100	100	110	110
Specimen length	500mm-700mm	500mm-700mm	500mm-800mm	600mm-1000mm	600mm-1200mm
Jaw clamping method	Hydraulic double-sided side pusher
Alignment accuracy	±0.3mm
Clip hardness	HRC55-60
Control cabinet (LxWxH)	700x600x1710mm
Control cabinet weight	200kg
Oil source cabinet (LxWxH)	1200x1200x1400mm	1200x1200x1400mm	1200x1200x1400mm	1580x1200x1400mm	1580x1200x1400mm
The weight of the oil source cabinet	400kg	500kg	600kg	800kg	800kg
Main unit (L x W x H)	970x710x2700mm	970x710x2880mm	1000x750x3400mm	1400x900x4280mm	1400x900x5080mm
Net weight of the whole machine	3300kg	3800kg	5500kg	12000kg	13000kg
