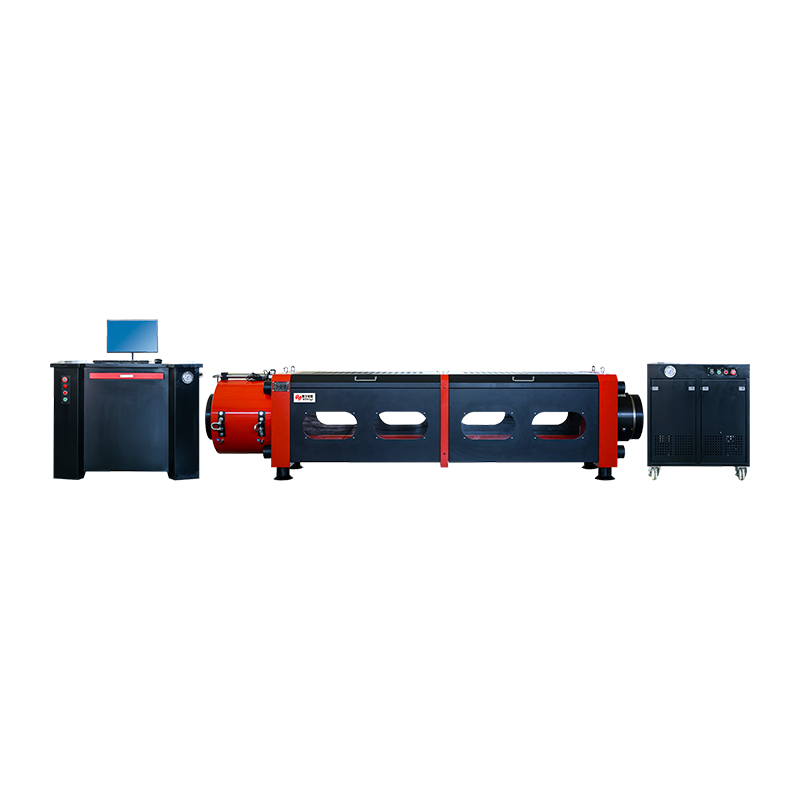

MGW-6500 Computer Controlled Static Load Anchoring Testing Machine

Function Overview:
The microcomputer controlled static load anchorage testing machine is a specialized equipment for the inspection and type testing of prestressed anchorages, the on-site acceptance of anchorages for large-scale engineering units, and the inspection of prestressed anchorage assembly components by product quality supervision departments.
The device consists of a fully automatic closed-loop control system composed of digital valves and microcomputer measurement and control technology, which can accurately control and measure the entire testing process.

1. Brand computers significantly enhance the laboratory's image, and the unique SmartTest interface brings a smooth user experience
2. Multi functional visual manual control box, comfortable to touch and easy to operate. (Optional)
3. The dual protection of oil cylinder limit and displacement integrated structure makes the test safer
4. Transparent explosion-proof safety net ensures visibility and safety during the testing process
5. The hydraulic system is equipped with a three-phase asynchronous motor and a high radial piston pump, which is efficient and stable
6. High precision load sensor, high precision, good repeatability, good long-term stability, accuracy level 0.5
7. The pre tensioning loading system of the mobile anchoring machine, combined with a visual manual control box, is more convenient and efficient to operate
8. The equipment is equipped with a protective sandbox, making the experiment safer and more stable
